TECHNIFLO PW-N AND PW-N-K SERIES

PW-N

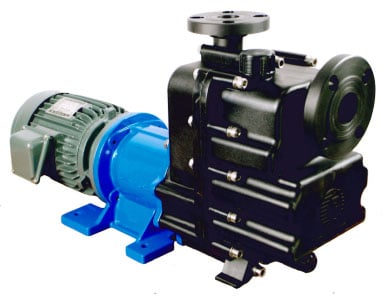

Techniflo PW-N and PW-N-K Self-Priming Magnetic Drive Series

This range of self-priming magnetic drive pumps offers operators up to 600 L/min and maximum discharge pressures of up to 36 m.

PW-N & PW-N-K series are based on varying materials of construction.

  • PW-N Series: self-priming polypropylene construction
  • PW-N-K Series: self-priming PVDF construction
Speak to us today
  • Product Information
  • Downloads
400PW-N.CV - flow rate up to 245 L/min, discharge up to 10 m
400PW-N.CV

This Techniflo 400PW-N.CV magnetic drive pump offers flow rates up to 245 L/min and a maximum discharge pressure up to 10 m.

Features of mag-drive pumps
  • non-metallic wetted parts: Polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring available.
  • suction lift up to 3 m
  • liquid Temperatures up to 70 ºC
  • closed coupled to standard 0.75 kW, 415 Volt motor. Optional 240 Volt available.
401PW-N.CV - flow rate up to 325 L/min, discharge up to 16 m
401PW-N.CV

This magnetic drive pump, 401PW-N.CV, achieves flow rates up to 325 L/min and a maximum discharge pressure up to 16 m.

Features of mag-drive pumps:
  • non-metallic wetted parts: Polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring available
  • suction lift up to 3.3 m
  • liquid Temperatures up to 70 ºC
  • pumps come closed coupled to standard 0.75 kW, 415 Volt motor. Optional 240 Volt available
402PW-N.CV - flow rate up to 470 L/min, pressures up to 24m
402PW-N.CV

This Techniflo 402PW-N.CV magnetic drive pump achieves flow rates up to 470 L/min and a maximum discharge pressure up to 24 m.

Features of mag-drive pumps:
  • non-metallic wetted parts: Polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring available
  • suction lift up to 4 m
  • liquid Temperatures up to 70 ºC
  • pumps come close coupled to standard 1.5 kW, 415 Volt motor Optional 240 Volt available
403PW-N.CV - flow rate up to 570 L/min, pressure up to 26m
403PW-N.CV

The Techniflo model 403PW-N.CV offers operators flow rates up to 570 L/min and a maximum discharge pressure up to 26 m.

Features of mag-drive pumps:
  • non-metallic wetted parts: Polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring available
  • suction lift up to 4 m
  • liquid temperatures up to 70 ºC
  • pumps come close coupled to standard 2.2 kW, 415 Volt motor. Optional 240 Volt available
405PW-N.CV - flow rate up to 600 L/min, pressure up to 36 m
405PW-N.CV

The Techniflo model 405PW-N.CV offers flow rates up to 600 L/min and a maximum discharge pressure up to 36 m.

Features of mag-drive pumps
  • non-metallic wetted parts: Polypropylene casing with Viton front casing O-ring. Optional EPDM O-ring available
  • suction lift up to 4 m
  • liquid Temperatures up to 70 ºC
  • pumps come close coupled to standard 4.0 kW, 415 Volt motor
1200px-PDF_file_icon

400PW-N Data Sheet.pdf
1200px-PDF_file_icon

Techniflo General Brochure.pdf
1200px-PDF_file_icon

401PW-N Data Sheet.pdf
1200px-PDF_file_icon

402PW-N Data Sheet.pdf
1200px-PDF_file_icon

403PW-N Data Sheet.pdf
1200px-PDF_file_icon

405PW-N Data Sheet.pdf
1200px-PDF_file_icon

400PW-N-K Data Sheet.pdf
