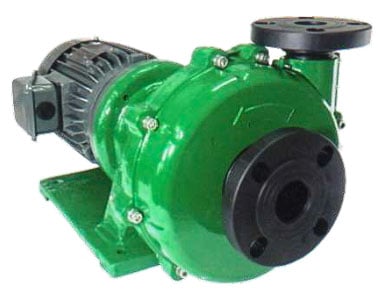

TECHNIFLO MAG PWH AND PWH-F SERIES

Techniflo model 553PWH.CV mag-drive pump achieves flow rates up to 640 L/min and a maximum discharge pressure up to 30 m.

Features of mag-drive pumps:

• pumps come close coupled to standard 2.2 kW, 415 Volt motor
• non-metallic PPG (glass reinforced polypropylene) wetted parts and FPM (fluoroelastomer) front casing O-ring
• liquid Temperatures up to 70 ºC

Techniflo model 553PWH.CV mag-drive pump achieves flow rates up to 800 L/min and a maximum discharge pressure up to 38.5 m.

Features of mag-drive pumps:

• pumps come close coupled to standard 3.7 kW, 415 Volt motor
• non-metallic PPG (glass reinforced polypropylene) wetted parts and FPM (fluoroelastomer) front casing O-ring
• liquid Temperatures up to 70 ºC

Techniflo 557PWH.CV magnetic drive pump offers flow rates up to 850 L/min and a maximum discharge pressure up to 45 m.

Features of mag-drive pumps:

• pumps come close coupled to standard 5.5 kW, 415 Volt motor
• non-metallic PPG (glass reinforced polypropylene) wetted parts and FPM (fluoroelastomer) front casing O-ring
• liquid Temperatures up to 70 ºC

Techniflo model 5010PWH.CV mag-drive pump achieves flow rates up to 900 L/min and a maximum discharge pressure up to 48 m.

Features of mag-drive pumps:

• Pumps come close coupled to standard 7.5 kW, 415 Volt motor
• non-metallic PPG (glass reinforced polypropylene) wetted parts and FPM (fluoroelastomer) front casing O-ring
• liquid Temperatures up to 50 ºC

Techniflo model 553PWH.CV mag-drive pump achieves flow rates up to 640 L/min and a maximum discharge pressure up to 30 m.

Features of mag-drive pumps:

• pumps come close coupled to standard 2.2 kW, 415 Volt motor
• non-metallic PPG (glass reinforced polypropylene) wetted parts and FPM (fluoroelastomer) front casing O-ring
• liquid Temperatures up to 70 ºC

Techniflo model 555PWH.CV mag-drive pump achieves flow rates up to 800 L/min and a maximum discharge pressure up to 38.5 m.

Features of mag-drive pumps:

• pumps come close coupled to standard 3.7 kW, 415 Volt motor
• non-metallic PPG (glass reinforced polypropylene) wetted parts and FPM (fluoroelastomer) front casing O-ring
• liquid Temperatures up to 70 ºC

Techniflo model 557PWH-F.AV offers flow rates up to 849L/min and a maximum discharge pressure up to 45m.

Features of mag-drive pumps:

• pumps come close coupled to standard 5.5 kW, 415 Volt motor
• non-Metallic ETFE wetted parts and FPM
  (fluoroelastomer) front casing O-ring.
• liquid Temperatures up to 70 ºC.

Techniflo model 5010PWH-F.AV magnetic drive pump offers operators flow rates up to 900 L/min and a maximum discharge pressure up to 48 m.

Features of mag-drive pumps:

• pumps come close coupled to standard 7.5 kW, 415 Volt motor
• non-metallic ETFE wetted parts and FPM
  (fluoroelastomer) front casing O-ring.
• maximum head 47.5m
• liquid Temperatures up to 50 ºC
