VERDERFLEX DURA SERIES

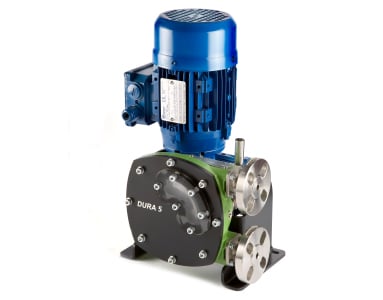

The Verderflex Dura 5 is a small peristaltic pump designed for precise dosing, offering:

• Maximum flow rate: 23 L/hr
• Maximum discharge pressure: 8 bar
• Maximum medium temperature: 80 ºC
• Compressible solid size 1.25 mm
• Suction lift: 9.5 m wc
• Certification: ATEX

The Verderflex Dura 7 is a small peristaltic pump designed for precision dosing and metering in various industrial applications. With a compact design and high efficiency, it ensures reliable fluid transfer while handling abrasive and viscous liquids.

• Maximum flow rate: 39 L/hr
• Maximum discharge pressure: 8 bar
• Maximum medium temperature: 80 ºC.
• Compressible solid size: 1.75 mm
• Suction lift: 9.5 m wc
• Certification: ATEX

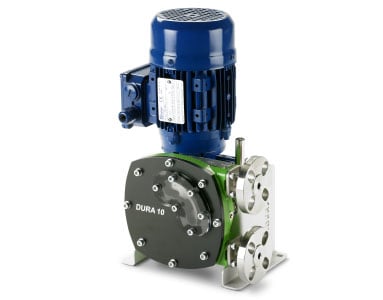

The Verderflex Dura 10 is a versatile compact hose pump, ideal for medium-flow applications:

• Maximum flow rate: 222 L/hr
• Maximum discharge pressure: 12 bar
• Maximum medium temperature: 80 ºC
• Compressible solid size: 2.5 mm
• Suction lift: 9.5 m wc
• Certification: ATEX, FDA and EC/1935

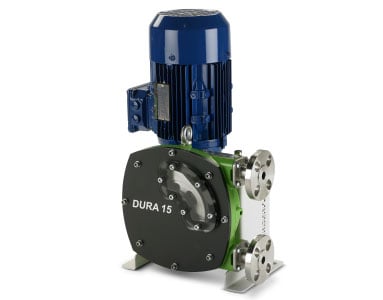

The Verderflex Dura 15 provides efficient fluid transfer with:

• Maximum flow rate: 593 L/hr
• Maximum discharge pressure: 12 bar
• Maximum medium temperature: 80 ºC
• Compressible solid size: 3.75 mm
• Suction lift: 9.5 m wc
• Certification: ATEX, FDA and EC/1935

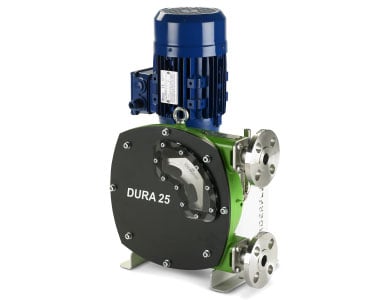

The Verderflex Dura 25 is built for higher flow applications:

• Maximum flow rate: 2,387 L/hr
• Maximum pressure: 12 bar
• Maximum medium temperature: 80 ºC
• Compressible solid size: 6.25 mm
• Suction lift: 9.5 m wc
• Certification: ATEX, FDA and EC/1935

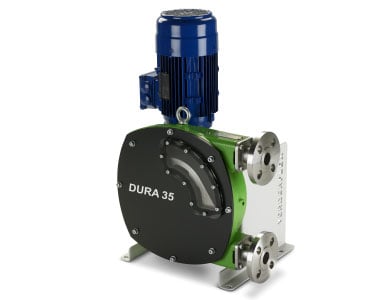

For demanding applications, the Verderflex Dura 35 provides:

• Maximum flow rate: 5,292 L/hr
• Maximum pressure: 16 bar
• Maximum medium temperature: 80 ºC
• Compressible solid size: 8.75 mm
• Suction lift: 9.5 m wc
• Certification: ATEX, FDA and EC/1935

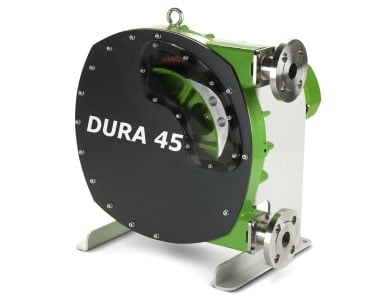

The Verderflex Dura 45 is a robust solution for larger-scale operations:

• Maximum flow rate: 12,240 L/hr
• Maximum pressure: 16 bar
• Maximum medium temperature: 90 ºC
• Compressible particle size: 11.25 mm
• Certification: ATEX, FDA and EC/1935

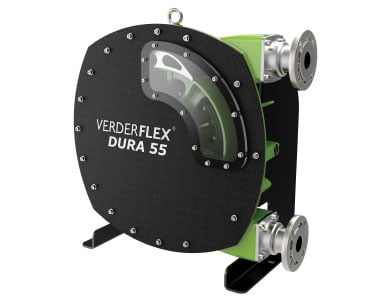

The Verderflex Dura 55, the largest in the range, offers high-volume pumping with:

• Maximum flow rate: 15,300 L/hr
• Maximum pressure: 16 bar
• Maximum medium temperature: 90 ºC
• Compressible particle size: 13.75 mm
• Certification: ATEX, FDA and EC/1935

The Verderflex Dura 65 is specifically designed for applications such as metering, dosing and transfer duties - particularly those pumping sludges, slurries and abrasives:

• Maximum flow rate:33,000 L/hr
• Maximum pressure: 16 bar
• Maximum medium temperature: 90 ºC
• Self-priming and dry running capability
• In-situ hose change for reduced maintenance time
• Minimised downtime and lower cost of ownership
