Verderair VA80 metallic

3" Inch (80mm) Diaphragm Pumps.

For transferring of lubricants, oils, solvents, chemicals and other fluids. Even used for dewatering and sump evacuation.

Flow rates up to 1200 L/min and pressures up to 8.6 bar.

Features of Air Operated Diaphragm Pumps:

  • Self priming, dry running
  • Rugged construction
  • Aluminium or stainless steel construction
  • Various elastomer options
  • Anti-freeze/anti-stall and lube free
  • Externally serviceable air distribution systems

Enquire here for more information or to request a quote:

FEATURES

Maximum fluid flow 1200 l/min
Maximum Fluid Discharge Pressure 8,6 bars
Maximum air pressure 8,6 bars
Suction- and discharge connections 3” BSP/NPT und (only for aluminium pumps) DN80 DIN PN10/16 – 3”Ainsi 150 Combi flange
Air inlet connection 3/4" NPT
Maximum suction lift dry 2,4 m WC
wet 8,5 m WC
Maximum size pumpable solids 13 mm
Materials liquid parts Aluminium, Stainless Steel
Available materials valves Aluminium, Geolast, Polypropylene, Santoprene, Stainless Steel, Acetal, Hytrel, Buna-N, Viton
Available materials balls Geolast, Neoprene, Neoprene weighted, Santoprene, Acetal, Hytrel, PTFE, Buna-N, Viton
Available materials diaphragms Neoprene, Neoprene overmold, Buna-N, Viton, Geolast, Hytrel, Santoprene, PTFE/Santoprene 2 pieces
Material center section Aluminium or Polypropylene
Atex ( Ex II2 GD c IIC T4) Only models with aluminium center section

APPLICATIONS

  • Chemical transfers
  • Filter press-feed
  • Dewatering
  • Mining applications
  • Paint and stain manufacturing

CASE STUDIES

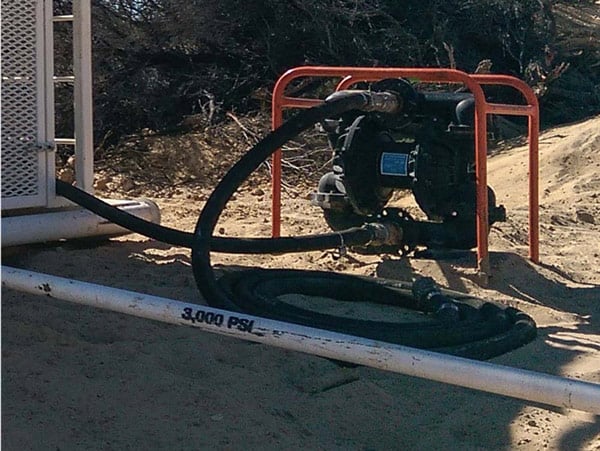

AOD Pumping Oil, Sand & Water



DOWNLOADS

View VA80 Metallic Data Sheet

View VA80 Operation Manual

View VA80 Repair Manual

View Verderair Product Brochure

VIDEOS

 How an Air Operated Diaphragm Pump Works:



How to Read an Air Operated Pump Curve:

Q&As

Do you keep these diaphragm pumps in stock?

Yes. Global Pumps stocks a complete range of these air operated diaphragm pumps in stock and ready for immediate shipping.

How to read an Air Operated Diaphragm Pump curve?

We often had this question asked, so we created a video to explain how to read and determine the values. You can watch the video here: How to read an Air Operated Diaphragm Pump curve.

Where do you deliver and what is your estimated shipping times?

At Global Pumps, we understand how important it is for you to receive your order as quickly as possible. That's why we strive to provide speedy delivery to your door, no matter where you are located across Australia.

Below is a guideline of how long it takes to ship our products to some of Australia's major cities. Of course, we can also deliver elsewhere around the nation, so if your location isn't mentioned don't worry, just talk to the team at Global Pumps!

Locations: Shipping Time Range:
Melbourne 1-2 Days
Sydney 2-3 Days
Brisbane 2-4 Days
Perth 2-4 Days
Adelaide 1 Day
Kalgoorlie 3-5 Days
Mt Isa 3-5 Days
