ISO END SUCTION CENTRIFUGAL PUMPS

GP-WWW-Product-End-suction

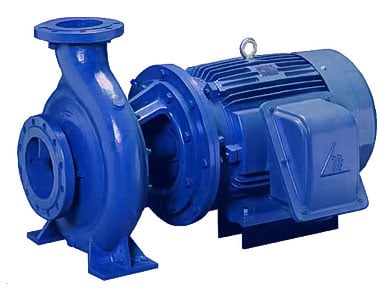

ISO End Suction Centrifugal Pumps

ISO End Suction Pumps are a centrifugal-style pump, simple in design and efficient. These pumps conform to ISO 2858 and ISO 5199, and are optimised to ensure the highest capacity.

Features include:

  • available with diesel or electric-drive motors
  • high performance - stable head capacity and improved non-overloading
  • lower operating costs
  • simple, low cost maintenance
  • excellent interchangeability - standardised ES-ISO means greater reduction in spare parts stock-holdings


GALLERY

WORKING PRINCIPLE

ISO End Suction Pumps are a type of centrifugal pump; therefore the working principle is the same.

Centrifugal pumps work on the principle of forced vortex flow. This means when a certain mass of fluid or liquid is allowed to rotate by an external torque then there is a rise in pressure head of the rotating liquid taking place. This rise in pressure head is used to deliver the pumped liquid from one location to another.

APPLICATIONS

ISO End Suction Centrifugal Pumps are suitable for the following applications:

  • Power industry: DM water, condensate transfer, fill and other auxiliary services, fire protection duties
  • Chemical industry: process applications, emergency fire services, power generation systems, general mechanical services
  • General industry: paper and sugar industries, marine applications, iron and steel production
  • Building services: fire protection systems, general mechanical services
  • Irrigation and water supply: sprinkler, drip and floor irrigation, municipal water supply

DOWNLOADS

Please contact Global Pumps to request data sheets or technical information.

FAQs

Where do you deliver and what is your estimated shipping times?

Global Pumps understand how important it is for you to receive your order as quickly as possible. That’s why we strive to provide speedy delivery to your site, no matter where you are located within Australia.

Locations Shipping Time Range
Melbourne 1-2 Days
Sydney 2-3 Days
Brisbane 2-4 Days
Perth 2-4 Days
Adelaide 1 Day
Kalgoorlie 3-5 Days
Mt Isa 3-5 Days

PRODUCT INFORMATION

ISO End Suction Pumps offer operators a diverse range of features in some of the toughest applications. Each component has been specifically designed to ensure the highest efficiency:

  • casing: the volute has been designed with finite element stress analysis technique to ensure high strength and optimum performance.
  • impeller: developed using empirical data to optimise on capacity and efficiency.
  • back cover: advanced design to complement high performance characteristics of the casing and impeller.
  • shaft: this is constructed from high quality stainless steel.
  • housing: rigid single-piece casting for strength and durability featuring positive no-gap location to casing and ensuring accurate coupling realignment.
  • bearing: two heavy duty, single row, deep groove ball bearings design-rated to ensure an exceptionally long, trouble-free life.

Besides these key features, the ISO End Suction Pump offers operators:

  • higher performance, with the pump proven to our-perform, size for any other pump in the market
  • low operated costs ensure higher efficiencies compared to similar-style pumps
  • simple, low cost maintenance - back-pullout feature simplifies maintenance

NOT SURE WHERE TO START

Guide to Selecting the Best Pump

If you need some guidance on how to select the right pump then you’re not alone! There’s such a wide range of pumps in Australia, from centrifugal pumps to hose pumps to diaphragm pumps. The options available to you can make it a difficult choice, so we’ve created this special guide to help step you through the process of selecting the ideal pump for your requirements.

Download
